Karta produktu
R6F1002SAISIN

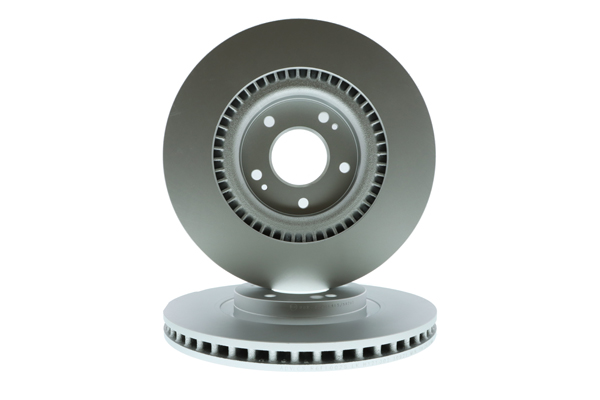

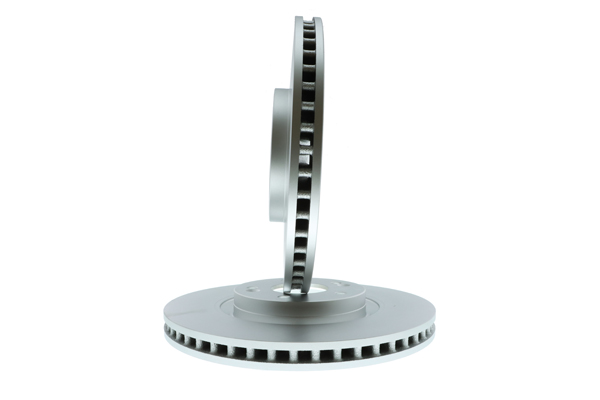

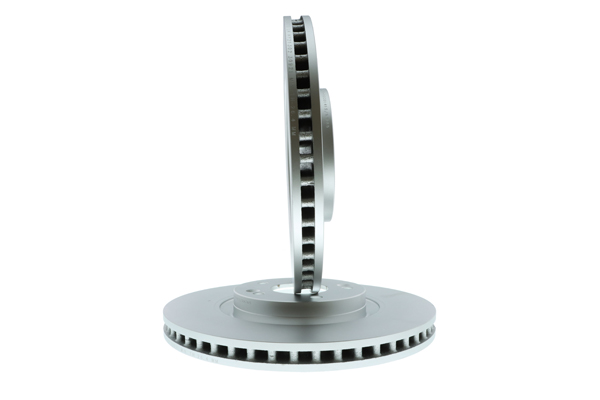

tarcza hamulcowa
R6F1002S_AIS
TARCZA HAMULCOWA
Ocena produktu
Kup teraz
Cena
Dostępność
Mag. główny
Towar zamówiony
do 14:00
będzie do odbioru po 15:00
Towar zamówiony
do 14:00
będzie do odbioru po 15:00

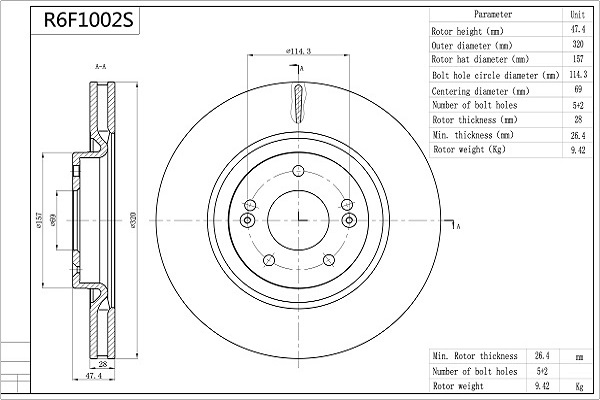

0Parametry
| Typ tarczy hamulcowej | wentylowany |
| Powierzchnia | pokryty |
| Średnica zewnętrzna [mm] | 320 |
| Grubość tarczy hamulcowej [mm] | 28 |
| Wysokość [mm] | 47,4 |
| Średnica otworu centrującego [mm] | 69 |
| Minimalna grubość [mm] | 26,4 |
| Ciężar [kg] | 9,42 |
| Liczba otworów | 5 |
| Ø rozmieszczenia otworów [mm] | 114,3 |
Numery OEM
HYUNDAI: 517122T000, 517122T100, 51712 D7100, S517122T100
HYUNDAI (BEIJING): 517122T000
KIA: 517122T000, 517122T100, 517124C000, 51712D7100, S517122T100
HYUNDAI (BEIJING): 517122T000
KIA: 517122T000, 517122T100, 517124C000, 51712D7100, S517122T100
Odpowiedniki
A.B.S.: 18177
A.P.: 25494 V
ABE: C30534ABE, C30534ABE-P
AKEBONO: BN-0599, BN-0599E
APEC: DSK2922, SDK6701
ASHIKA: 60-0H-H17
ASHUKI BY PALIDIUM: Y089-54
ATE: 24.0128-0258.1
BLUE PRINT: ADG043180
BORG & BECK: BBD5238, BBD6235S
BOSCH: 0 986 479 A21
BRAKE ENGINEERING: DI956967
BRECO: BV 9104
BREMBO: 09.C245.11
COMLINE: ADC2412V
DELPHI: BG4683C
DENCKERMANN: B130661
DON: PCD13532
FAI AUTOPARTS: BD720, FPBD6118S
FEBI BILSTEIN: 108489
FERODO: DDF2199C, DDF2199C-1-D, DDF2199X
FTE: 9071097, 9081081, BS7328, BS7328B
GIRLING: 6075921
HELLA: 8DD 355 117-971
HELLA PAGID: 8DD 355 117-971
HERTH+BUSS JAKOPARTS: J3300546
IAP QUALITY PARTS: 709-07120
ICER: 78BD5271-2
JAPANPARTS: DI-H17
JP GROUP: 3563102700
JURATEK: KIA133
JURID: 562987JC, 562987JC-1
KAVO PARTS: BR-3269-C
KAWE: 61436 10
LPR: H2026V, H2026VR
MAGNETI MARELLI: 360406184001, 361302040855
MAPCO: 45706C
MAXGEAR: 19-2230, 19-2230SPORT
METELLI: 23-1403C
METZGER AUTOTEILE: 6110695
MEYLE: 37-15 521 0036/PD
MINTEX: MDC2343
MOTAQUIP: LVBD1648
NIPPARTS: N3300539
NISSHINBO: ND6073K
NK: 203443, 313443
NPS: H330I46
OPEN PARTS: BDR2606.20
OPTIMAL: BS-9138, BS-9138HC
PAGID: 55378, 55378HC, 55378NC
R BRAKE: 78RBD25271
RAICAM: RD01428
REMSA: 61436.10
ROADHOUSE: 61436.10
SBS: 1815203443, 1815313443
SWAG: 33 10 7212
TEXTAR: 92237803, 92237805
TRISCAN: 8120 43164, 8120 43164C
TRW: DF7592
VALEO: 197737, 672971
ZIMMERMANN: 285.3519.20, 285.3519.52, 285.3519.53
A.P.: 25494 V
ABE: C30534ABE, C30534ABE-P
AKEBONO: BN-0599, BN-0599E
APEC: DSK2922, SDK6701
ASHIKA: 60-0H-H17
ASHUKI BY PALIDIUM: Y089-54
ATE: 24.0128-0258.1
BLUE PRINT: ADG043180
BORG & BECK: BBD5238, BBD6235S
BOSCH: 0 986 479 A21
BRAKE ENGINEERING: DI956967
BRECO: BV 9104
BREMBO: 09.C245.11
COMLINE: ADC2412V
DELPHI: BG4683C
DENCKERMANN: B130661
DON: PCD13532
FAI AUTOPARTS: BD720, FPBD6118S
FEBI BILSTEIN: 108489
FERODO: DDF2199C, DDF2199C-1-D, DDF2199X
FTE: 9071097, 9081081, BS7328, BS7328B
GIRLING: 6075921
HELLA: 8DD 355 117-971
HELLA PAGID: 8DD 355 117-971
HERTH+BUSS JAKOPARTS: J3300546
IAP QUALITY PARTS: 709-07120
ICER: 78BD5271-2
JAPANPARTS: DI-H17
JP GROUP: 3563102700
JURATEK: KIA133
JURID: 562987JC, 562987JC-1
KAVO PARTS: BR-3269-C
KAWE: 61436 10
LPR: H2026V, H2026VR
MAGNETI MARELLI: 360406184001, 361302040855
MAPCO: 45706C
MAXGEAR: 19-2230, 19-2230SPORT
METELLI: 23-1403C
METZGER AUTOTEILE: 6110695
MEYLE: 37-15 521 0036/PD
MINTEX: MDC2343
MOTAQUIP: LVBD1648
NIPPARTS: N3300539
NISSHINBO: ND6073K
NK: 203443, 313443
NPS: H330I46
OPEN PARTS: BDR2606.20
OPTIMAL: BS-9138, BS-9138HC
PAGID: 55378, 55378HC, 55378NC
R BRAKE: 78RBD25271
RAICAM: RD01428
REMSA: 61436.10
ROADHOUSE: 61436.10
SBS: 1815203443, 1815313443
SWAG: 33 10 7212
TEXTAR: 92237803, 92237805
TRISCAN: 8120 43164, 8120 43164C
TRW: DF7592
VALEO: 197737, 672971
ZIMMERMANN: 285.3519.20, 285.3519.52, 285.3519.53
Samochody osobowe
HYUNDAI: GRANDEUR (HG) (2011-01 » ), i20 III (BC3, BI3) (2020-08 » ), i40 I (VF) (2012-03 » 2019-05), i40 I CW (VF) (2011-07 » 2019-05), i40 I Kombi Van (VF) (2011-07 » 2019-05), ix35 (LM, EL, ELH) (2009-08 » 2016-10), KONA (OS, OSE, OSI) (2017-06 » 2024-07), NEXO (FE) (2018-03 » ), SONATA VII (LF) (2014-03 » 2023-06), TUCSON (TL, TLE) (2015-05 » 2023-05), TUCSON Furgon/SUV (TLE) (2015-05 » 2020-12)
KIA: CADENZA I (VG) (2010-01 » ), CEED (CD) (2018-03 » ), CEED (JD) (2012-05 » 2018-07), CEED Combi Van (JD) (2012-07 » 2018-07), CEED Hatchback Van (CD) (2018-03 » ), CEED Sportswagon (JD) (2012-09 » 2018-07), OPTIMA (FSGDS6B) (2010-01 » 2017-04), OPTIMA (JF) (2015-09 » ), OPTIMA Sportswagon (JF) (2016-09 » 2019-12), PRO CEED (JD) (2013-03 » 2018-07), PROCEED (CD) (2018-10 » ), PROCEED Combi Van (CD) (2018-10 » ), SOUL II (PS) (2014-02 » 2019-04), SPORTAGE IV (QL, QLE) (2015-01 » 2022-10), SPORTAGE IV VAN (QL, QLE) (2015-09 » ), XCEED (CD) (2019-06 » ), XCEED Van (CD) (2019-06 » )
KIA: CADENZA I (VG) (2010-01 » ), CEED (CD) (2018-03 » ), CEED (JD) (2012-05 » 2018-07), CEED Combi Van (JD) (2012-07 » 2018-07), CEED Hatchback Van (CD) (2018-03 » ), CEED Sportswagon (JD) (2012-09 » 2018-07), OPTIMA (FSGDS6B) (2010-01 » 2017-04), OPTIMA (JF) (2015-09 » ), OPTIMA Sportswagon (JF) (2016-09 » 2019-12), PRO CEED (JD) (2013-03 » 2018-07), PROCEED (CD) (2018-10 » ), PROCEED Combi Van (CD) (2018-10 » ), SOUL II (PS) (2014-02 » 2019-04), SPORTAGE IV (QL, QLE) (2015-01 » 2022-10), SPORTAGE IV VAN (QL, QLE) (2015-09 » ), XCEED (CD) (2019-06 » ), XCEED Van (CD) (2019-06 » )
